KAWASAKI
JS440
1977

Spare Part Category
Show me all the part categories of the model

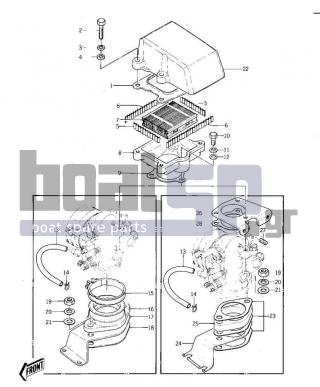

KAWASAKI - JS440 1977 - Engine/Transmission - CARBURETOR BRACKETS/FLAME ARRESTER ('77-
Engine/Transmission
CARBURETOR BRACKETS/FLAME ARRESTER ('77-
No Part Part No Notes
1 PLATE,FLAME ARRESTER 59086-540
2 BOLT,6X28 110R0628
3 WASHER-SPRING,6MM 461S0600
4 WASHER 410S0600
5 SPRING 92081-544
6 SPRING 92081-545
7 ARRESTER,FLAME 59006-502
8 CASE,FLAME ARRESTER 59021-527-9G
9 GASKET 11060-3702
10 BOLT 6X20 110R0620
10 BOLT,HEX HEAD,6X25 110R0625
11 WASHER-SPRING,6MM 461S0600
12 WASHER 410S0600
13 PIPE,PULS 92059-518
14 CLAMP,SPARK PLUG CAP 92037-1173
15 CLAMP 92037-550
15 CLAMP 92037-550
16 HOLDER-CARBURETOR 16065-516
17 BRACKET,CONTROL 59016-558
17 BRACKET,CONTROL 59016-558
18 GASKET,INTAKE 16062-521
19 NUT,8MM 312R0800
20 WASHER SPRING 8MM 461S0800
21 WASHER 410S0800
22 COVER,AIR INTAKE 59036-563
23 GASKET,INSULATOR 11009-3786
24 BRACKET,CONTROL 11034-3004
25 INSULATOR 16061-511
26 BRACKET,CARBURETOR 11034-3003
27 STUD,6X12 171R0612
28 GASKET 11060-3702
