KAWASAKI
ULTRA LX
2011

Spare Part Category
Show me all the part categories of the model

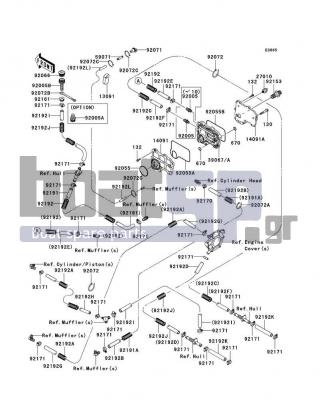

KAWASAKI - ULTRA LX 2011 - Engine/Transmission - Cooling
Engine/Transmission
Cooling
No Part Part No Notes
130 BOLT-FLANGED,8X50 130BD0850
132 BOLT-FLANGED-SMALL,6X20 132BD0620
670 O RING,14MM 670D2014
13091 HOLDER 13091-3712
14091 COVER,INSIDE 14091-3755
14091A COVER,OUTSIDE 14091-3756
27010 SWITCH,OIL PRESSURE 27010-3786
39067A COOLER-OIL 39067-3707
59071 JOINT 59071-3764
92005A FITTING,FLUSH 92005-3748
92005B FITTING,FLUSH 92005-3757
92055 RING-O,58X3 92055-3767
92055A RING-O,INSIDE 92055-3770
92055B RING-O,OUTSIDE 92055-3772
92066 PLUG 92066-3787
92071 GROMMET 92071-3815
92072 BAND,L=188.85 92072-0105
92072A BAND,L=152 92072-3874
92072B BAND 92072-3877
92072C BAND,L=100.08 92072-3882
92153 BOLT,OIL COOLER 92153-3713
92161 DAMPER 92161-1331
92170 CLAMP 92170-3729
92171 CLAMP 92171-3714
92191 TUBE,CHAMBER-TAIL PIPE 92191-3850
92191A TUBE,CORRUGATED,19.5X23.8X500 92191-3884
92192 TUBE,CORRUGATED,19.5X23.8X900 92192-3711
92192A TUBE,CORRUGATED,19.5X23.8X380 92192-3714
92192B TUBE,12X18X630 92192-3716
92192C TUBE,CORRUGATED,19.5X23.8X1400 92192-3732
92192D TUBE,GENERATOR-HULL 92192-3739
92192E TUBE,12X18X1000 92192-3740
92192F TUBE,12X18X1520 92192-3741
92192G TUBE,12X18X480 92192-3742
92192H TUBE,12X18X450 92192-3745
92192I TUBE,WATER MUFFLER-HULL 92192-3746
92192J TUBE,CORRUGATED,L=600M 92192-3751
92192K TUBE,12X19X120 92192-3796
92192L TUBE,7X12X1590 92192-3848
