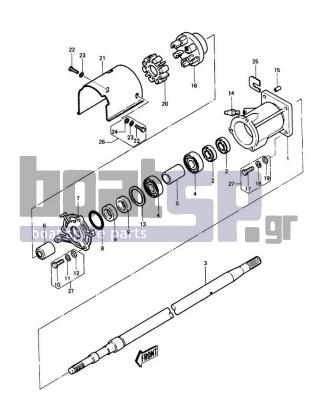

KAWASAKI - JS550 1988 - Engine/Transmission - DRIVE SHAFT

Engine/Transmission
DRIVE SHAFT
No	Part	Part No	Notes
1	HOUSING-BEARING	41046-502
2	SEAL-OIL,AC1799EX	92050-501
3	SHAFT,DRIVE	13107-3008
4	BEARING-BALL,#6305C3	601B6305
5	COLLAR	92027-502
6	SLEEVE,BEARING	42036-501
7	COVER,BEARING	14025-3008
8	RING-O	92055-501
9	SEAL-OIL,AC1799EX	92050-501
13	SHIM,T=0.15	92025-502
13A	SHIM,T=0.3	92025-503
14	FITTING,GREASE	92005-501
15	PIN-DOWEL	551R0612
16	COUPLING	42034-3005
20	DAMPER,COUPLING	92075-520
21	COVER,COUPLING	59036-567
25	SHIM,T=0.3MM	92025-3701
25A	SHIM,T=0.5MM	92025-3702
25B	SHIM,T=1.0MM	92025-3703
25C	SHIM,T=1.5MM	92025-3704
26	BOLT,6X16	92150-3714
27	BOLT-WSP-SMALL,8X25	155R0825
