KAWASAKI
JS550
1986

Spare Part Category
Show me all the part categories of the model

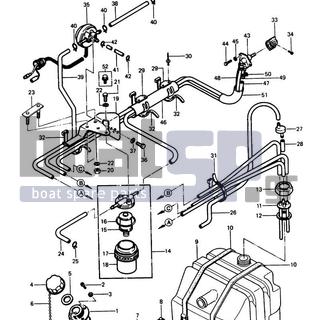

KAWASAKI - JS550 1986 - Body Parts - FUEL TANK
Body Parts
FUEL TANK
No Part Part No Notes
1 FILLER,FUEL TANK 59231-3001
2 SCREW 92011-562
3 WASHER 92022-563
4 CAP-TANK 51049-3001
5 GASKET,TANK CAP 11009-3020
6 CHAIN,COVER,L=80 92057-3004
7 TUBE,FUEL INLET 92059-3020
8 CLAMP 92037-3009
9 TANK-FUEL 51004-3702
10 BAND,FUEL TANK 92072-521
11 PIPE-COMP,FUEL 31064-3001
12 GASKET 92065-504
13 RETAINER 23072-501
14 FILTER-FUEL 49019-3701
15 FILTER,FUEL ELEMENT 14043-3701
16 RING-O,FILTER CUP 92055-3006
17 NUT,RING 92015-3013
18 CUP,FUEL FILTER 51036-3701
19 BRACKET,FUEL FILTER 11034-3013
20 NUT-HEX,6MM 311R0600
21 BOLT,6X12 110R0612
22 WASHER-SPRING,6MM 461S0600
23 BRACKET 11034-3701
24 TUBE,6X10X200 92059-3011
25 CLAMP 92037-3024
26 TUBE,FUEL,6X10X940 92059-3025
27 VALVE-RELIEF 49057-3001
28 TUBE,5.8X12.2X55 92059-3026
29 CLAMP,TUBE 92037-3005
30 RIVET 92039-3702
31 BAND,L=123 92072-030
32 BAND,L=149 92072-031
33 KNOB,FUEL TAP 92077-503
34 SCREW-PAN-CROS,4X8 220R0408
35 VALVE-ASSY,RPM LIMITER 49116-3001
36 BOLT,6X14 110R0614
37 WASHER-SPRING,6MM 461S0600
38 TUBE,FUEL,6X235 92059-3036
39 TUBE,FUEL,6X680 92059-3037
40 CLAMP 92037-3024
41 TUBE,FUEL,2.5X185 92059-3038
42 CLAMP,TUBE 92037-3025
43 TAP-ASSY,FUEL 51023-501
44 BOLT,5X12 110R0512
45 WASHER-PLAIN,5MM 411S0500
46 TUBE,VINYL,22X350 92059-3018
47 TUBE,FUEL,"ON",6X1180 92059-3005
48 TUBE,FUEL,"RESERVE" 92059-3006
49 TUBE,6X10X960 92059-3007
50 CLAMP 92037-551
51 TUBE,GUARD 92059-3008
