Body Parts
|
|

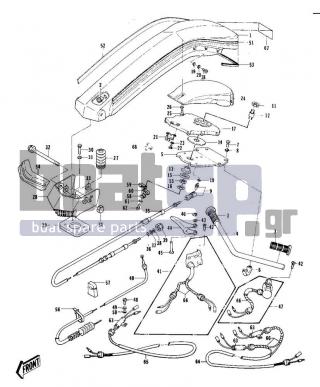

HANDLE POLE/CABLES (JS440-A2)
|
|
| No |
Part |
Part No |
Notes |
|
2
|
GROMMET |
92071-530 |
|
|
3
|
GRIP,HANDLE,RH |
46075-3704 |
|
|
4
|
HANDLEBAR |
32032-3017 |
|
|
5
|
PLATE,HANDLEBAR |
13169-3004 |
|
|
6
|
CLAMP,HANDLE PIPE |
92037-503 |
|
|
7
|
SCREW,8X25 |
221R0825 |
|
|
8
|
WASHER |
92095-511 |
|
|
9
|
JOINT-BALL |
59266-3707 |
|
|
10
|
WASHER-SPRING,6MM |
461S0600 |
|
|
11
|
NUT,16M/M |
92015-536 |
|
|
12
|
STUD,PIVOT |
92004-3003 |
|
|
13
|
BUSHING |
92028-513 |
|
|
14
|
BUSHING |
92028-512 |
|
|
15
|
WASHER |
92022-571 |
|
|
16
|
NUT 18M/M |
92015-506 |
|
|
17
|
BRACKET,SUPPORT |
11046-3847 |
|
|
18
|
SCREW,6X18 |
220R0618 |
|
|
19
|
WASHER |
411S0600 |
|
|
20
|
WASHER-SPRING,6MM |
461S0600 |
|
|
21
|
HOLDER,CABLE |
16065-509 |
|
|
22
|
SCREW,PAN HEAD,6X12 |
220R0612 |
|
|
23
|
WASHER-SPRING,6MM |
461S0600 |
|
|
24
|
FLOAT ASSY, HANDLE |
16031-506 |
|
|
25
|
SCREW 0.16X0.5 |
92011-562 |
|
|
26
|
WASHER |
92022-563 |
|
|
27
|
COVER-STEERING CABLE |
59176-514 |
|
|
28
|
BRACKET-HANDLE-POLE,S |
39021-3701-F2 |
|
|
29
|
PLATE-POLE BRACKET |
59086-538 |
|
|
30
|
BOLT,8X30 |
92150-3721 |
|
|
31
|
WASHER |
411S0800 |
|
|
32
|
BOLT,14X183 |
92001-3018 |
|
|
33
|
WASHER |
92022-507 |
|
|
34
|
NUT 14M/M |
92015-507 |
|
|
35
|
CABLE,STEERING |
59406-3001 |
|
|
36
|
"O" RING |
670B2011 |
|
|
37
|
WASHER |
92022-535 |
|
|
39
|
NUT 20 M/M |
92015-526 |
|
|
40
|
CABLE,THROTTLE |
54012-3001 |
|
|
41
|
SWITCH,STOP |
27010-3002 |
|
|
42
|
SCREW,OVL CNTSNK,6X22 |
222R0622 |
|
|
43
|
WASHER |
410S0600 |
|
|
44
|
LEVER,THROTTLE |
59126-509 |
|
|
45
|
PIN,THROTTLE |
92043-3003 |
|
|
46
|
RING,SNAP |
92036-518 |
|
|
47
|
SWITCH,START |
27010-3001 |
|
|
48
|
SCREW,6X20 |
220R0620 |
|
|
49
|
WASHER-SPRING,6MM |
461S0600 |
|
|
50
|
WASHER |
411S0600 |
|
|
51
|
DECAL-HANDLE POLE LH |
56027-531 |
|
|
52
|
DECAL-HANDLE POLE RH |
56027-530 |
|
|
53
|
GROMMET |
92071-534 |
|
|
54
|
DAMPER |
92075-519 |
|
|
55
|
NUT,18M/M |
92015-537 |
|
|
56
|
BAND,SHORT |
92072-030 |
|
|
57
|
DETENT,STEERING CABLE |
59346-504 |
|
|
58
|
WASHER,CLAMP |
92022-3014 |
|
|
59
|
CLAMP,LEAD WIRE |
92037-3007 |
|
|
60
|
CLAMP,LEAD WIRE |
92037-3008 |
|
|
61
|
WASHER-SPRING,5MM |
461S0500 |
|
|
62
|
SCREW-PAN-CROS |
220R0516 |
|
|
63
|
CASE,CONNECTOR |
32099-3002 |
|
|
64
|
HARNESS,START |
26001-3003 |
|
|
65
|
HARNESS,STOP |
26001-3004 |
|
|
66
|
TUBE,SPIRAL |
92059-3010 |
|
|
67
|
LABEL-SFTY-HNDL POLE |
56022-507 |
|
|
68
|
HOLDER,THROTTLE CABLE |
16065-517 |
|
|
|
|
