Body Parts
|
|

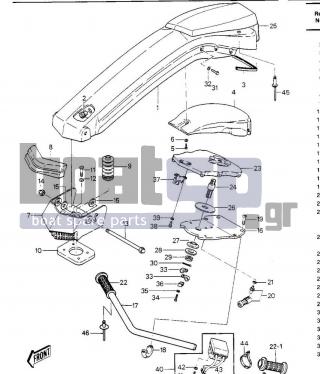

HANDLE POLE/SWITCHES (JS550-A3/A4)
|
|
| No |
Part |
Part No |
Notes |
|
1
|
POLE-HANDLE-PLAIN |
59166-3002-8C |
|
|
2
|
GROMMET |
92071-530 |
|
|
3
|
GROMMET |
92071-534 |
|
|
4
|
FLOAT ASSY, HANDLE |
16031-506 |
|
|
5
|
SCREW 0.16X0.5 |
92011-562 |
|
|
6
|
WASHER |
92022-563 |
|
|
7
|
BRACKET,HANDLE POLE |
39021-3701 |
|
|
8
|
DAMPER |
92075-519 |
|
|
9
|
COVER-STEERING CABLE |
59176-514 |
|
|
10
|
PLATE-POLE BRACKET |
59086-538 |
|
|
11
|
BOLT,8X30 |
92150-3721 |
|
|
12
|
WASHER |
411S0800 |
|
|
13
|
BOLT,14X183 |
92001-3018 |
|
|
14
|
NUT 14M/M |
92015-507 |
|
|
15
|
WASHER,O36XO15X4.5T |
92022-3024 |
|
|
16
|
PLATE,HANDLEBAR |
13169-3004 |
|
|
17
|
HANDLEBAR |
32032-3017 |
|
|
18
|
CLAMP,HANDLE PIPE |
92037-503 |
|
|
19
|
SCREW,8X22 |
92009-3701 |
|
|
20
|
JOINT-BALL |
59266-3707 |
|
|
21
|
WASHER-SPRING,6MM |
461S0600 |
|
|
22
|
GRIP,HANDLE,RH |
46075-3704 |
|
|
22-1
|
GRIP,HANDLE,RH |
46075-3704 |
|
|
23
|
BRACKET,SUPPORT |
11046-3847 |
|
|
24
|
STUD |
92004-3701 |
|
|
25
|
PAD-HANDLE |
39087-3701 |
|
|
26
|
BUSHING |
92028-512 |
|
|
27
|
BUSHING |
92028-513 |
|
|
28
|
WASHER |
92022-571 |
|
|
29
|
NUT,CASTLE,18M/M |
92015-3006 |
|
|
30
|
PIN-COTTER,4X40 |
550S4040 |
|
|
31
|
BOLT 6X16 |
110R0616 |
|
|
32
|
WASHER |
411S0600 |
|
|
33
|
CLAMP,LEAD WIRE |
92037-3007 |
|
|
34
|
SCREW-PAN-CROS |
220R0516 |
|
|
35
|
WASHER-SPRING,5MM |
461S0500 |
|
|
36
|
WASHER,CLAMP |
92022-3014 |
|
|
37
|
HOLDER,CABLE |
14044-3001 |
|
|
38
|
BOLT 6X12 |
110R0612 |
|
|
39
|
WASHER-SPRING,6MM |
461S0600 |
|
|
40
|
SWITCH ASSY |
27004-3002 |
|
|
41
|
SCREW,PAN HEAD,5X20 |
220R0520A |
|
|
42
|
WASHER,PLAIN,5MM |
410S0500 |
|
|
43
|
TUBE,SPIRAL |
92059-3010 |
|
|
44
|
BAND,MIDDLE |
92072-031 |
|
|
45
|
RIVET |
92039-3712 |
|
|
|
|
