Body Parts
|

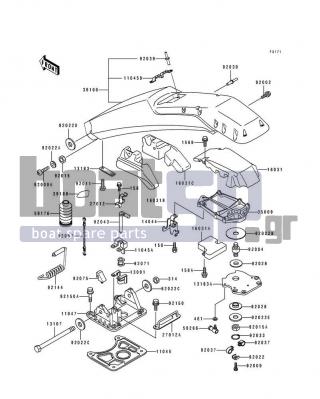

Handle Pole(&NAMI.KAW64650 91)
|
|
No |
Part |
Part No |
Notes |
150
|
BOLT-WS,6X12 |
150R0612 |
|
156
|
BOLT-WP,5X10 |
156R0510 |
|
156A
|
BOLT-WP,5X12 |
156R0512 |
|
156B
|
BOLT-WP,5X14 |
156R0514 |
|
314
|
NUT-HEX-FINE,14MM |
314R1400 |
|
461
|
WASHER-SPRING,6MM |
461S0600 |
|
11045
|
BRACKET,BACK-UP PLATE |
11045-3722 |
|
11045A
|
BRACKET,POLE STOPPER |
11045-3728 |
|
11045B
|
BRACKET,HANDLE POLE PAD |
11045-3733 |
|
11047
|
BRACKET,PIVOT SHAFT |
11047-3756 |
|
13091
|
HOLDER |
13091-3717 |
|
13107
|
SHAFT,PIVOT |
13107-3709 |
|
13183
|
PLATE |
13183-3720 |
|
13183A
|
PLATE,HANDLEBAR |
13183-3761 |
|
14044
|
HOLDER-CABLE |
14044-3001 |
|
16031
|
FLOAT |
16031-3715 |
|
16031A
|
FLOAT,CNT |
16031-3737 |
|
16031B
|
FLOAT,LH |
16031-3738 |
|
16031C
|
FLOAT,RH |
16031-3752 |
|
27012
|
HOOK |
27012-3717 |
|
27012A
|
HOOK,ENGINE HOOD |
27012-3733 |
|
35009
|
BRACE |
35009-3705 |
|
39100
|
POLE-COMP-HANDLE,M.M.BLUE |
39100-3707-TA |
|
39188
|
TAPE,(BLUE) |
39188-3703 |
|
59176
|
CAP. |
59176-514 |
|
59266
|
JOINT-BALL |
59266-3701 |
|
92002
|
BOLT,6X16 |
92002-3728 |
|
92004
|
STUD |
92004-3724 |
|
92009
|
SCREW,5X16 |
92009-3736 |
|
92009A
|
SCREW |
92009-3738 |
|
92011
|
SCREW |
92011-562 |
|
92015
|
NUT |
92015-3015 |
|
92015A
|
NUT,18MM |
92015-3746 |
|
92022
|
WASHER,CLAMP |
92022-3014 |
|
92022A
|
WASHER |
92022-3042 |
|
92022B
|
WASHER |
92022-3716 |
|
92022C
|
WASHER,15X34X2.0 |
92022-3738 |
|
92022D
|
WASHER,15X36X4.5 |
92022-3741 |
|
92022E
|
WASHER |
92022-571 |
|
92028
|
BUSHING |
92028-3726 |
|
92033
|
RING-SNAP,15MM |
92033-3710 |
|
92037
|
CLAMP,LEAD WIRE |
92037-3007 |
|
92039
|
RIVET |
92039-3701 |
|
92043
|
PIN,POLE STOPPER |
92043-3714 |
|
92057
|
CHAIN,COVER,L=100 |
92057-3704 |
|
92071
|
GROMMET |
92071-3752 |
|
92075
|
DAMPER,POLE STOPPER |
92075-3742 |
|
92144
|
SPRING,HANDLE POLE |
92144-3716 |
|
92150
|
BOLT,6X12 |
92150-3709 |
|
92150A
|
BOLT,8X30 |
92150-3721 |
|
|
|
|
