Body Parts
|
|

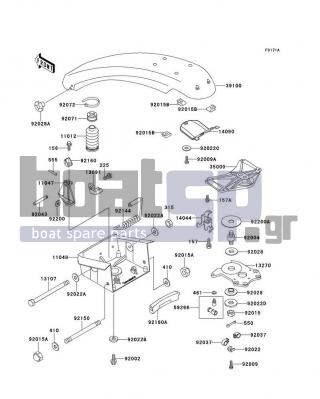

Handle Pole(JS750-B2/B3)
|
|
| No |
Part |
Part No |
Notes |
|
156
|
BOLT-WP,6X16 |
156R0616 |
|
|
157
|
BOLT-WSP,6X16 |
157R0616 |
|
|
157A
|
BOLT-WSP,6X20 |
157R0620 |
|
|
225
|
SCREW-PAN-WSP-CROS,5X16 |
225R0516 |
|
|
315
|
NUT-HEX-FINE,14MM |
315R1400 |
|
|
410
|
WASHER-PLAIN-SMALL,6MM |
410S0600 |
|
|
461
|
WASHER-SPRING,6MM |
461S0600 |
|
|
550
|
PIN-COTTER,4X40 |
550S4040 |
|
|
555
|
PIN-SPRING,3X25 |
555B0325 |
|
|
11012
|
CAP |
11012-3754 |
|
|
11047
|
BRACKET |
11047-3800 |
|
|
11048
|
BRACKET,PIVOT SHAFT,J.WHITE |
11048-3785-8C |
|
|
13091
|
HOLDER |
13091-3774 |
|
|
13107
|
SHAFT,PIVOT |
13107-3725 |
|
|
13270
|
PLATE,HANDLEBER |
13270-3805 |
|
|
14044
|
HOLDER-CABLE |
14044-3716 |
|
|
14090
|
COVER,HANDLE POLE,J.S.VIOLET |
14090-3708-23 |
|
|
35009
|
BRACE |
35009-3707 |
|
|
39100
|
POLE-COMP-HANDLE,J.S.VIOLET |
39100-3713-23 |
|
|
59266
|
JOINT-BALL |
59266-3707 |
|
|
92002
|
BOLT,8X25 |
92002-3774 |
|
|
92004
|
STUD |
92004-3728 |
|
|
92009
|
SCREW,5X16 |
92009-3736 |
|
|
92009A
|
SCREW,5X16 |
92009-3797 |
|
|
92015
|
NUT,CASTLE,18MM |
92015-3006 |
|
|
92015A
|
NUT,CAP,6MM |
92015-3755 |
|
|
92015B
|
NUT,CLIP,5MM |
92015-3830 |
|
|
92022
|
WASHER,CLAMP |
92022-3014 |
|
|
92022A
|
WASHER,15X34X2.0 |
92022-3738 |
|
|
92022B
|
WASHER,8.5X34X3 |
92022-3746 |
|
|
92022C
|
WASHER |
92022-567 |
|
|
92022D
|
WASHER |
92022-571 |
|
|
92028
|
BUSHING |
92028-3743 |
|
|
92028A
|
BUSHING,STEERING |
92028-3752 |
|
|
92037
|
CLAMP,LEAD WIRE |
92037-3007 |
|
|
92043
|
PIN |
92043-3739 |
|
|
92071
|
GROMMET |
92071-3788 |
|
|
92072
|
BAND |
92072-3778 |
|
|
92144
|
SPRING |
92144-3735 |
|
|
92150
|
BOLT,6X119 |
92150-3787 |
|
|
92160
|
DAMPER |
92160-3790 |
|
|
92160A
|
DAMPER |
92160-3846 |
|
|
92200
|
WASHER,3.5X12X1 |
92200-3723 |
|
|
92200A
|
WASHER,20.5X80X3 |
92200-3725 |
|
|
|
|
