Body Parts
|

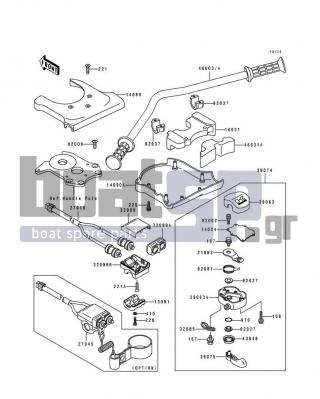

Handlebar
|
|
No |
Part |
Part No |
Notes |
156
|
BOLT-WP,5X25 |
156R0525 |
|
157
|
BOLT-WSP,5X12 |
157R0512 |
|
220
|
SCREW-PAN-CROS,5X20 |
220R0520 |
|
221
|
SCREW-CSK-CROS,6X16 |
221R0616 |
|
221A
|
SCREW-CSK-CROS,6X25 |
221R0625 |
|
225
|
SCREW-PAN-WSP-CROS,5X20 |
225R0520 |
|
410
|
W-PLAIN-S,5MM |
410S0500 |
|
670
|
O RING,8MM |
670B1508 |
|
13091
|
HOLDER,SWITCH |
13091-3767 |
|
14024
|
COVER,THROTTLE LEVER |
14024-3701 |
|
14090
|
COVER,HANDLE,UPP,VIOLET |
14090-3705-PJ |
|
14090A
|
COVER,HANDLE,LWR,VIOLET |
14090-3706-PJ |
|
16031
|
FLOAT,HANDLE COVER |
16031-3800 |
|
16031A
|
FLOAT,HANDLE COVER |
16031-3812 |
|
21083
|
ARM,THROTTLE LEVER |
21083-3701 |
|
27010
|
SWITCH,STOP&START |
27010-3732 |
|
27045
|
SWITCH-ASSY,STOP&START |
27045-3706 |
27045 - SWITCH-ASSY,STOP&START
*|*(OPTION)
|
32085
|
STOPPER |
32085-3709 |
|
32099
|
CASE,UPP,SWITCH |
32099-3764 |
|
32099A
|
CASE,FR,SWITCH |
32099-3765 |
|
32099B
|
CASE,LWR,SWITCH |
32099-3766 |
|
39063
|
HOUSING-CONTROL,UPP |
39063-3713 |
|
39063A
|
HOUSING-CONTROL,LWR |
39063-3714 |
|
39074
|
LEVER-ASSY-THROTTLE |
39074-3714 |
|
39075
|
LEVER-THROTTLE |
39075-3708 |
|
43049
|
PACKING,THROTTLE LEVER |
43049-3701 |
|
46003
|
HANDLE |
46003-3718 |
|
92002
|
BOLT,SOCKET,3X10 |
92002-3751 |
|
92009
|
SCREW,8X22 |
92009-3701 |
|
92027
|
COLLAR,THROTTLE LEVER |
92027-3704 |
|
92037
|
CLAMP,HANDLEBAR |
92037-503 |
|
92081
|
SPRING,THROTTLE LEVER RETURN |
92081-3702 |
|
|
|
|
