KAWASAKI
JET MATE
1991

Spare Part Category
Show me all the part categories of the model

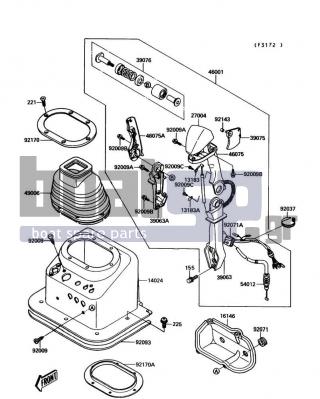

KAWASAKI - JET MATE 1991 - Body Parts - Handlebar
Body Parts
Handlebar
No Part Part No Notes
155 BOLT-WSP-SMALL,8X35 155R0835
221 SCREW-CSK-CROS,4X16 221R0416
225 SCREW-PAN-WSP-CROS,6X20 225R0620
13183 PLATE,SWITCH HARNESS 13183-3763
13183A PLATE,THROTTLE CABLE 13183-3764
14024 COVER,HANDLE,P.WHITE 14024-3752-F1
16146 COVER-ASSY,FUSE 16146-3705
27004 SWITCH-ASSY,START&STOP 27004-3712
39063 HOUSING-CONTROL,LH 39063-3710
39063A HOUSING-CONTROL,RH 39063-3711
39075 LEVER-THROTTLE 39075-3707
39076 LIMITER 39076-3702
46001 HANDLE-ASSY 46001-3702
46075 GRIP,LH 46075-3716
46075A GRIP,RH 46075-3717
49006 BOOT,HANDLE 49006-3712
54012 CABLE-THROTTLE 54012-3724
92009 SCREW,TAPPING,5X20 92009-3756
92009A SCREW,5X30 92009-3774
92009B SCREW,5X20 92009-3775
92009C SCREW,3X6 92009-3776
92037 CLAMP 92037-1173
92071 GROMMET 92071-1027
92071A GROMMET 92071-3775
92093 SEAL 92093-3724
92143 COLLAR 92143-3719
92170 CLAMP,HANDLE BOOT,UPP 92170-3702
92170A CLAMP,HANDLE BOOT,LWR 92170-3703
