KAWASAKIJET SKIΒ® ULTRAΒ® 310LX2014
|
|
|
Body Parts
|
|

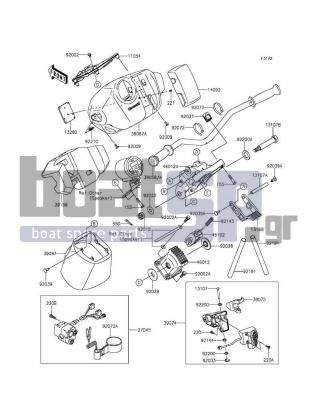

Handlebar
|
|
| No |
Part |
Part No |
Notes |
|
155
|
BOLT-WSP-SMALL,8X50 |
155R0850 |
|
|
220
|
SCREW-PAN-CROS,5X14 |
220R0514 |
|
|
220A
|
SCREW-PAN-CROS,5X25 |
220R0525 |
|
|
220B
|
SCREW-PAN-CROS,5X30 |
220R0530 |
|
|
221
|
SCREW-CSK-CROSS,4X12 |
221R0412 |
|
|
550
|
PIN-COTTER,3X35 |
550S3035 |
|
|
11054
|
BRACKET,HANDLE PAD |
11054-3710 |
|
|
13107
|
SHAFT |
13107-3766 |
|
|
13107A
|
SHAFT |
13107-3795 |
|
|
13107B
|
SHAFT,HANDLE HOLDER PIVOT |
13107-3803 |
|
|
13168
|
LEVER |
13168-3754 |
|
|
13280
|
HOLDER |
13280-0734 |
|
|
14092
|
COVER,GPS HOLDER,F.BLACK |
14092-1144-6Z |
|
|
27045
|
SWITCH-ASSY,STOP&START |
27045-3767 |
|
|
39058A
|
HANDLE-COMP,F.BLACK |
39058-3746-6Z |
|
|
39074
|
LEVER-ASSY-THROTTLE |
39074-3729 |
|
|
39075
|
LEVER-THROTTLE |
39075-3715 |
|
|
39087
|
PAD-HANDLE,F.BLACK |
39087-0007-6Z |
|
|
39087A
|
PAD-HANDLE,F.BLACK |
39087-0009-6Z |
|
|
39156
|
PAD,HANDLE,INNER |
39156-1738 |
|
|
46012
|
HOLDER-HANDLE,LWR |
46012-3730 |
|
|
46012A
|
HOLDER-HANDLE,UPP |
46012-3733 |
|
|
46102
|
ROD,HANDLE POSITION |
46102-3733 |
|
|
92002
|
BOLT,6X12 |
92002-3763 |
|
|
92002A
|
BOLT,8X25 |
92002-3774 |
|
|
92009
|
SCREW,6X20 |
92009-3781 |
|
|
92015
|
NUT,CASTLE,14MM |
92015-3805 |
|
|
92022
|
WASHER,15X34X2.0 |
92022-3738 |
|
|
92028
|
BUSHING |
92028-3743 |
|
|
92033
|
RING-SNAP |
92033-3723 |
|
|
92037
|
CLAMP,HANDLEBAR |
92037-503 |
|
|
92039
|
RIVET |
92039-3787 |
|
|
92039A
|
RIVET |
92039-3788 |
|
|
92072
|
BAND,L=188.85 |
92072-0105 |
|
|
92072A
|
BAND,TETHER SWITCH |
92072-3809 |
|
|
92144
|
SPRING |
92144-3749 |
|
|
92145
|
SPRING |
92145-3723 |
|
|
92191
|
TUBE,22X24X200 |
92191-3792 |
|
|
92200
|
WASHER |
92200-3738 |
|
|
92200A
|
WASHER,21X34X2 |
92200-3802 |
|
|
92210
|
NUT,6MM |
92210-3768 |
|
|
|
|
