Please select company, model and Year.
|
|
|
|
|
|
|
Frame
|
|

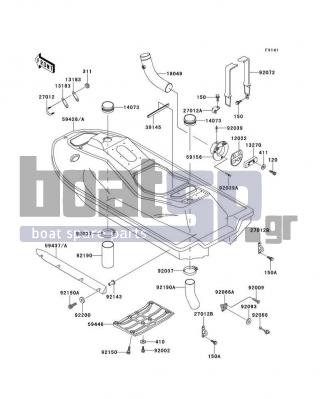

Hull(JH900-A1/A2)
|
|
| No |
Part |
Part No |
Notes |
|
120
|
BOLT-SOCKET |
120R0616 |
|
|
150
|
BOLT-WS,6X14 |
150R0614 |
|
|
150A
|
BOLT-WS,6X18 |
150R0618 |
|
|
311
|
NUT-HEX,6MM |
311R0600 |
|
|
410
|
WASHER-PLAIN-SMALL,6MM |
410S0600 |
|
|
411
|
WASHER-PLAIN,6MM |
411S0600 |
|
|
12022
|
VALVE-REED |
12022-3705 |
|
|
13183
|
PLATE |
13183-3809 |
|
|
13270
|
PLATE |
13270-3785 |
|
|
14073
|
DUCT,AIR INTAKE |
14073-3750 |
|
|
18049
|
PIPE-EXHAUST |
18049-3755 |
|
|
27012
|
HOOK |
27012-3761 |
|
|
27012A
|
HOOK,WATER MUFFLER |
27012-3777 |
|
|
27012B
|
HOOK,REAR |
27012-3782 |
|
|
39145
|
TRIM-SEAL,L=480 |
39145-3745 |
|
|
59156
|
PIPE-TAIL |
59156-3711 |
|
|
59426
|
HULL-COMP,F.RED |
59426-3836-B1 |
59426 - HULL-COMP,F.RED
US*|*
|
|
59426A
|
HULL-COMP,J.S.VIOLET |
59426-3836-23 |
59426A - HULL-COMP,J.S.VIOLET
US*|*
|
|
59437
|
STABILIZER,J.S.VIOLET |
59437-3708-RE |
59437 - STABILIZER,J.S.VIOLET
US*|*
|
|
59437A
|
STABILIZER,F.RED |
59437-3708-6L |
|
|
59446
|
COVER-JET PUMP,J.S.VIOLET |
59446-3728-23 |
|
|
92002
|
BOLT,6X20 |
92002-3755 |
|
|
92009
|
SCREW,TAPPING,4X14 |
92009-3755 |
|
|
92037
|
CLAMP |
92037-541 |
|
|
92039
|
RIVET,4.8MM |
92039-3719 |
|
|
92039A
|
RIVET |
92039-3741 |
|
|
92066
|
PLUG,RR,DRAIN |
92066-3744 |
|
|
92066A
|
PLUG,DRAIN |
92066-3749 |
|
|
92072
|
BAND,WATER MUFFLER |
92072-3781 |
|
|
92093
|
SEAL |
92093-3720 |
|
|
92143
|
COLLAR |
92143-3739 |
|
|
92150
|
BOLT,SOCKET,6X18 |
92150-3775 |
|
|
92150A
|
BOLT,SOCKET,6X40 |
92150-3847 |
|
|
92190
|
TUBE |
92190-3962 |
|
|
92190A
|
TUBE |
92190-3963 |
|
|
92200
|
WASHER,6.5X16X1.0 |
92200-3712 |
|
|
|
|
