KAWASAKI
SXI PRO
1999

Spare Part Category
Show me all the part categories of the model

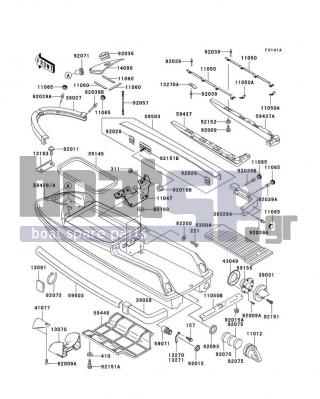

KAWASAKI - SXI PRO 1999 - Frame - Hull(JS750-C2-C5)
Frame
Hull(JS750-C2-C5)
No Part Part No Notes
157 BOLT-WSP,5X18 157R0518
221 SCREW-CSK-CROS,6X20 221R0620
311 NUT-HEX,6MM 311R0600
410 WASHER-PLAIN-SMALL,6MM 410S0600
11012 CAP,F.BLACK 11012-3752-6Z
11047 BRACKET,CONTROL KNOB 11047-3745
11050 BRACKET,STABILIZER 11050-3730
11050A BRACKET,STABILIZER 11050-3731
11050B BRACKET 11050-3752
11060 GASKET 11060-3722
11065 CAP,F.BLACK 11065-3707-6Z
13070 GUIDE,INTAKE 13070-3708
13091 HOLDER,BAND 13091-3764
13183 PLATE 13183-3787
13270 PLATE 13270-3782
13270A PLATE 13270-3906
14090 COVER,TANK CAP,BLACK MICA 14090-3707-5M
39027 BUMPER-FRONT,F.BLACK 39027-3740-6Z
39028 BUMPER-REAR,LH,F.BLACK 39028-3750-6Z
39028A BUMPER-REAR,RH,F.BLACK 39028-3751-6Z
39031 CAP-END 39031-3705
39145 TRIM-SEAL 39145-3731
41077 ADAPTER 41077-3701
43049 PACKING,TCV25X45X11 43049-3717
53004 MAT,DECK 53004-3801
59071 JOINT 59071-3763
59156 PIPE-TAIL 59156-3722
59426A HULL-COMP,J.WHITE 59426-3897-8C
59437 STABILIZER,LH,J.WHITE 59437-3715-8U
59437A STABILIZER,RH,J.WHITE 59437-3716-8U
59446 COVER-JET PUMP 59446-3748
59503 FENDER-BOAT,F.BLACK 59503-3705-6Z
92009 SCREW,6X15 92009-3830
92009A SCREW,TAPPING,6X20 92009-3842
92011 SCREW,TAPPING 92011-561
92015 NUT,20MM 92015-3738
92015A NUT,6MM 92015-3767
92015B NUT,FLANGED,5MM 92015-3768
92026 SPACER 92026-3740
92038 KEY,TANK CAP 92038-3707
92039 RIVET 92039-3714
92039A RIVET 92039-3747
92039B RIVET 92039-3770
92057 CHAIN,COVER,L=100 92057-3704
92071 GROMMET 92071-3780
92072 BAND,L=148 92072-3768
92075 DAMPER 92075-3719
92093 SEAL,OSR70X82X7.5 92093-3704
92151 BOLT,SOCKET,M6,SHOULDER 92151-3746
92151A BOLT,SOCKET,6X20 92151-3774
92151B BOLT 92151-3778
92152 COLLAR 92152-3704
92160 DAMPER 92160-3797
92200 WASHER 92200-3720
