Frame
|
|

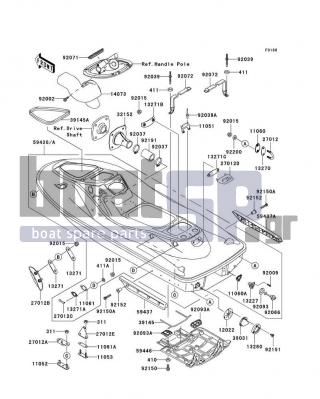

Hull
|
|
| No |
Part |
Part No |
Notes |
|
311
|
NUT-HEX,6MM |
311R0600 |
|
|
410
|
WASHER-PLAIN-SMALL,6MM |
410S0600 |
|
|
411
|
WASHER-PLAIN,5MM |
411S0500 |
|
|
411A
|
WASHER-PLAIN,8MM |
411S0800 |
|
|
11051
|
BRACKET,BREATHER-BILGE |
11051-3802 |
|
|
11052
|
BRACKET,RR DUCT |
11052-3712 |
|
|
11053
|
BRACKET |
11053-3746 |
|
|
11060
|
GASKET,U HOOK,RR |
11060-3800 |
|
|
11060A
|
GASKET,DRAIN PLUG |
11060-3801 |
|
|
11061
|
GASKET,CARGO HOOK |
11061-3730 |
|
|
11061A
|
GASKET |
11061-3731 |
|
|
12022
|
VALVE-REED |
12022-3712 |
|
|
13227
|
HOUSING,DRAIN PLUG,F.BLACK |
13227-3721-6Z |
|
|
13270
|
PLATE |
13270-3860 |
|
|
13271
|
PLATE |
13271-3724 |
|
|
13271A
|
PLATE,CARGO NET HOOK |
13271-3755 |
|
|
13271B
|
PLATE,REAR TOWING HOOK |
13271-3859 |
|
|
13271C
|
PLATE |
13271-3889 |
|
|
13280
|
HOLDER,EXHAUST VALVE |
13280-3718 |
|
|
14073
|
DUCT |
14073-3801 |
|
|
27012
|
HOOK |
27012-3797 |
|
|
27012A
|
HOOK |
27012-3816 |
|
|
27012B
|
HOOK,BOW,F.BLACK |
27012-3822-6Z |
|
|
27012C
|
HOOK,CARGO NET,G.SILVER |
27012-3828-F2 |
|
|
27012D
|
HOOK,REAR TOWING,F.BLACK |
27012-3836-6Z |
|
|
27012E
|
HOOK,WATER MUFFLER,RH |
27012-3849 |
|
|
32152
|
PIPE,DRIVE SHAFT |
32152-3703 |
|
|
39031
|
CAP-END |
39031-3708 |
|
|
39145
|
TRIM-SEAL,JET PUMP COVER |
39145-3768 |
|
|
39145A
|
TRIM-SEAL,L=1412 |
39145-3787 |
|
|
59426
|
HULL-COMP,J.WHITE |
59426-3949-8C |
59426 - HULL-COMP,J.WHITE
US*|*
|
|
59437
|
STABILIZER,LH,F.BLACK |
59437-3735-6Z |
|
|
59437A
|
STABILIZER,RH,F.BLACK |
59437-3736-6Z |
|
|
59446
|
COVER-JET PUMP |
59446-3758 |
|
|
92002
|
BOLT,6X20 |
92002-3755 |
|
|
92009
|
SCREW,TAPPING,4X16 |
92009-3849 |
|
|
92015
|
NUT,FLANGED,8MM |
92015-3709 |
|
|
92037
|
CLAMP |
92037-3009 |
|
|
92039
|
RIVET |
92039-3741 |
|
|
92039A
|
RIVET |
92039-3755 |
|
|
92066
|
PLUG,RR,DRAIN,F.BLACK |
92066-3783-6Z |
|
|
92071
|
GROMMET |
92071-3812 |
|
|
92072
|
BAND,314X18 |
92072-3814 |
|
|
92093
|
SEAL |
92093-3720 |
|
|
92093A
|
SEAL |
92093-3765 |
|
|
92150
|
BOLT,SOCKET,6X18 |
92150-3775 |
|
|
92150A
|
BOLT,SOCKET,6X30 |
92150-3822 |
|
|
92151
|
BOLT,SOCKET,M6,SHOULDER |
92151-3746 |
|
|
92152
|
COLLAR |
92152-3715 |
|
|
92191
|
TUBE,39X51X90 |
92191-3744 |
|
|
92200
|
WASHER |
92200-3779 |
|
|
|
|
