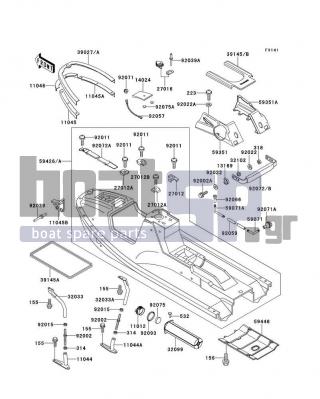

Frame
|
Hull
|
|
No |
Part |
Part No |
Notes |
155
|
BOLT-WSP-SMALL,8X16 |
155R0816 |
|
156
|
BOLT-WP,6X22 |
156R0622 |
|
223
|
SCREW-PAN-WS-CROS,6X20 |
223R0620 |
|
314
|
NUT-HEX-FINE,10MM |
314R1000 |
|
318
|
NUT-HEX-SMALL |
318R0800 |
|
532
|
RIVET-FLAT |
532R0508 |
|
11012
|
CAP |
11012-3708 |
|
11044
|
BRACKET,DECK,LH |
11044-3710 |
|
11044A
|
BRACKET,DECK,RH |
11044-3711 |
|
11045
|
BRACKET,BUMPER,LH |
11045-3711 |
|
11045A
|
BRACKET,BUMPER,RH |
11045-3712 |
|
11045B
|
BRACKET |
11045-3755 |
|
11046
|
BRACKET,BUMPER,CNT |
11046-3818 |
|
13169
|
PLATE |
13169-3714 |
|
14024
|
COVER,TANK CAP,JET WHITE |
14024-3731-8C |
|
27012
|
HOOK |
27012-3705 |
|
27012A
|
HOOK |
27012-501 |
|
27012B
|
HOOK |
27012-502 |
|
27016
|
LOCK-ASSY,TANK CAP COVER |
27016-3705 |
|
32033
|
PIPE,DECK,LH |
32033-3718 |
|
32033A
|
PIPE,DECK,RH |
32033-3719 |
|
32099
|
CASE,FIRE EXT. |
32099-3705 |
|
32102
|
PIPE |
32102-3704 |
|
39027
|
BUMPER-FRONT |
39027-3710 |
|
39145
|
TRIM-SEAL,DECK |
39145-3702 |
|
39145A
|
TRIM-SEAL |
39145-3726 |
|
59071
|
JOINT |
59071-3706 |
|
59071A
|
JOINT |
59071-3733 |
|
59351
|
DECK,LH,JET WHITE |
59351-3708-8C |
|
59351A
|
DECK,RH,JET WHITE |
59351-3709-8C |
|
59426
|
HULL-COMP,JET WHITE |
59426-3781-8C |
|
59446
|
COVER-JET PUMP |
59446-3703 |
|
92002
|
BOLT,10MM |
92002-3731 |
|
92002A
|
BOLT,8X30 |
92002-3742 |
|
92011
|
SCREW,TAPPING |
92011-561 |
|
92015
|
NUT,10MM |
92015-3737 |
|
92022
|
WASHER,8.5X19X1.2 |
92022-3730 |
|
92022A
|
WASHER |
92022-567 |
|
92039
|
RIVET |
92039-3002 |
|
92039A
|
RIVET |
92039-3714 |
|
92057
|
CHAIN,COVER,L=250 |
92057-3701 |
|
92059
|
TUBE,5.8X10.8X220 |
92059-3765 |
|
92066
|
PLUG |
92066-3706 |
|
92071
|
GROMMET |
92071-3733 |
|
92071A
|
GROMMET |
92071-3736 |
|
92072
|
BAND,TANDEM |
92072-3711 |
|
92072A
|
BAND,L=318 |
92072-3723 |
|
92075
|
DAMPER |
92075-3719 |
|
92075A
|
DAMPER |
92075-3760 |
|
92093
|
SEAL,OSR70X82X7.5 |
92093-3704 |
|
|
|
|
