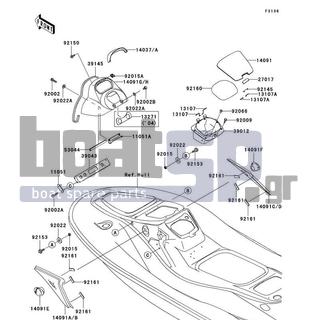

Frame
|
Hull Middle Fittings
|
|
No |
Part |
Part No |
Notes |
11051
|
BRACKET,CROSSMEMBER |
11051-3782 |
|
11051A
|
BRACKET |
11051-3811 |
|
13107
|
SHAFT |
13107-3761 |
|
13107A
|
SHAFT |
13107-3769 |
|
13271
|
PLATE,HANDLE COVER |
13271-3843 |
|
14037A
|
SCREEN,METER,M.R.RED |
14037-3709-369 |
|
14091
|
COVER,CENTER STORAGE,J.WHITE |
14091-3710-8C |
|
14091B
|
COVER,SIDE,LH,M.R.RED |
14091-3713-369 |
|
14091D
|
COVER,SIDE,RH,M.R.RED |
14091-3714-369 |
|
14091E
|
COVER,CHOKE KNOB,F.BLACK |
14091-3715-6Z |
|
14091F
|
COVER,FUEL KNOB,F.BLACK |
14091-3716-6Z |
|
14091G
|
COVER,HANDLE,M.R.RED |
14091-3768-369 |
|
27017
|
LOCK,CENTER STORAGE |
27017-3725 |
|
39012
|
CASE-STORAGE |
39012-3735 |
|
39043
|
CROSSMEMBER-COMP |
39043-3703 |
|
39145
|
TRIM-SEAL,L=900 |
39145-3772 |
|
53044
|
TRIM,L=180 |
53044-3755 |
|
92002A
|
BOLT,6X30 |
92002-3726 |
|
92002B
|
BOLT,6X12 |
92002-3763 |
|
92002
|
BOLT,6X25 |
92002-3714 |
|
92009
|
SCREW,TAPPING,5X20 |
92009-3716 |
|
92015
|
NUT,LOCK,5MM |
92015-3798 |
|
92015A
|
NUT,CLIP,5MM |
92015-3830 |
|
92022
|
WASHER,5X16X1.5 |
92022-3041 |
|
92022A
|
WASHER,6.5X20X1.5 |
92022-3710 |
|
92066
|
PLUG |
92066-3773 |
|
92145
|
SPRING |
92145-3711 |
|
92150
|
BOLT,5X16 |
92150-3778 |
|
92153
|
BOLT,5MM |
92153-3703 |
|
92160
|
DAMPER |
92160-3933 |
|
92161
|
DAMPER |
92161-3756 |
|
|
|
|
