KAWASAKIJET SKIΒ® ULTRAΒ® 310R2016
|
|
|
Frame
|
|

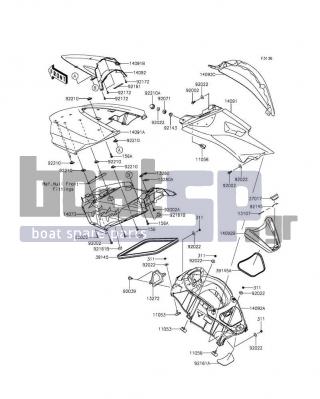

Hull Middle Fittings
|
|
| No |
Part |
Part No |
Notes |
|
156
|
BOLT-WP,6X18 |
156R0618 |
|
|
156A
|
BOLT-WP,6X20 |
156R0620 |
|
|
311
|
NUT-HEX,6MM |
311R0600 |
|
|
11053
|
BRACKET |
11053-3776 |
|
|
11056
|
BRACKET |
11056-3724 |
|
|
13107
|
SHAFT |
13107-3790 |
|
|
13272
|
PLATE,INTAKE COVER |
13272-1221 |
|
|
13280
|
HOLDER,ROD |
13280-3749 |
|
|
13280A
|
HOLDER,ROD |
13280-3751 |
|
|
14073
|
DUCT,HATCH,INNER |
14073-3837 |
|
|
14091
|
COVER,SIDE,LH,GREEN/EBONY |
14091-3780-774 |
|
|
14091A
|
COVER,FR HATCH,GREEN/EBONY |
14091-3824-774 |
|
|
14091B
|
COVER,METER |
14091-3825 |
|
|
14092
|
COVER,METER,RR,EBONY |
14092-0776-H8 |
|
|
14092A
|
COVER,HANDLE,F.BLACK |
14092-1123-6Z |
|
|
14092B
|
COVER,CENTER STORAGE,L.GREEN |
14092-3701-777 |
|
|
14092C
|
COVER,SIDE,RH,GREEN/EBONY |
14092-3708-774 |
|
|
27017
|
LOCK,CENTER STORAGE |
27017-3726 |
|
|
39145
|
TRIM-SEAL |
39145-3793 |
|
|
39145A
|
TRIM-SEAL,L=720 |
39145-3802 |
|
|
92002
|
BOLT,6X20 |
92002-3755 |
|
|
92002A
|
BOLT,6X12 |
92002-3763 |
|
|
92009
|
SCREW,TAPPING,4X16 |
92009-3849 |
|
|
92022
|
WASHER,6.5X20X1.5 |
92022-3710 |
|
|
92039
|
RIVET |
92039-3788 |
|
|
92071
|
GROMMET |
92071-3716 |
|
|
92143
|
COLLAR |
92143-3750 |
|
|
92145
|
SPRING |
92145-3729 |
|
|
92161
|
DAMPER,16X100X3.18 |
92161-0968 |
|
|
92161A
|
DAMPER,CENTER STORAGE |
92161-3773 |
|
|
92161B
|
DAMPER |
92161-3790 |
|
|
92172
|
SCREW,5X12 |
92172-3714 |
|
|
92210
|
NUT,6MM |
92210-3768 |
|
|
92210A
|
NUT,CAP,6MM |
92210-3785 |
|
|
|
|
