Frame
|

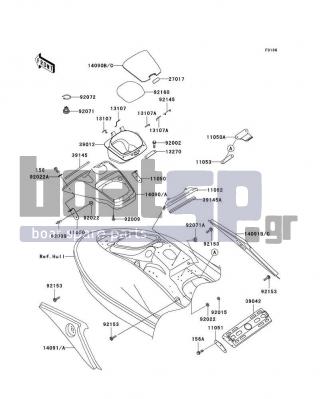

Hull Middle Fittings
|
|
No |
Part |
Part No |
Notes |
156
|
BOLT-WP,6X18 |
156R0618 |
|
156A
|
BOLT-WP,6X25 |
156R0625 |
|
11050
|
BRACKET |
11050-3746 |
|
11050A
|
BRACKET |
11050-3775 |
|
11051
|
BRACKET |
11051-3760 |
|
11052
|
BRACKET |
11052-3748 |
|
11053
|
BRACKET |
11053-3732 |
|
13107
|
SHAFT |
13107-3761 |
|
13107A
|
SHAFT |
13107-3769 |
|
13270
|
PLATE |
13270-3909 |
|
14090A
|
COVER,HANDLE,L.GREEN |
14090-3809-777 |
|
14090C
|
COVER,CENTER STORAGE,L.GREEN |
14090-3812-777 |
|
14091A
|
COVER,SIDE,LH,I.M.CARBON |
14091-3731-380 |
|
14091C
|
COVER,SIDE,RH,I.M.CARBON |
14091-3732-380 |
|
27017
|
LOCK,CENTER STORAGE,F.BLACK |
27017-3720-6Z |
|
39012
|
CASE-STORAGE |
39012-3737 |
|
39042
|
CROSSMEMBER,FR |
39042-3707 |
|
39145
|
TRIM-SEAL,L=340 |
39145-3764 |
|
39145A
|
TRIM-SEAL,L=340 |
39145-3779 |
|
92002
|
BOLT,6X25 |
92002-3714 |
|
92009
|
SCREW,TAPPING,5X20 |
92009-3716 |
|
92015
|
NUT,LOCK,5MM |
92015-3798 |
|
92022
|
WASHER,5X16X1.5 |
92022-3041 |
|
92022A
|
WASHER,6.5X20X1.5 |
92022-3710 |
|
92039
|
RIVET |
92039-3775 |
|
92071
|
GROMMET |
92071-3819 |
|
92071A
|
GROMMET |
92071-3826 |
|
92072
|
BAND,L=292.1 |
92072-3509 |
|
92145
|
SPRING |
92145-3711 |
|
92153
|
BOLT,5MM |
92153-3703 |
|
92160
|
DAMPER |
92160-3933 |
|
|
|
|
