Frame
|
|

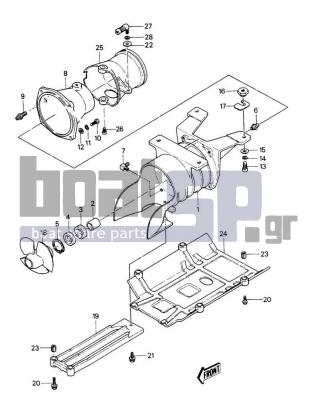

JET PUMP
|
|
| No |
Part |
Part No |
Notes |
|
1
|
CASE-PUMP |
59336-3701 |
|
|
2
|
BUSHING |
92028-503 |
|
|
3
|
SEAL-OIL,SCY20368 |
92050-502 |
|
|
4
|
SEAL-OIL,SC20367 |
92050-503 |
|
|
5
|
RING-SNAP |
92036-502 |
|
|
6
|
FITTING,GREASE |
92005-501 |
|
|
7
|
ELBOW |
52014-3002 |
|
|
8
|
NOZZLE-PUMP |
59136-3001 |
|
|
9
|
FITTING,HOSE |
92005-3001 |
|
|
10
|
BOLT,8X25 |
110R0825 |
|
|
11
|
WASHER-SPRING,8MM |
461S0800 |
|
|
12
|
WASHER |
92022-562 |
|
|
13
|
BOLT,10X25 |
92003-529 |
|
|
14
|
WASHER-SPRING,10MM |
461S1000 |
|
|
15
|
WASHER-PLAIN,10MM |
411S1000 |
|
|
16
|
NUT,10MM |
92015-3005 |
|
|
17
|
SHIM,T=0.3MM |
92025-3701 |
|
|
17A
|
SHIM,T=0.5MM |
92025-3702 |
|
|
17B
|
SHIM,T=1.0MM |
92025-3703 |
|
|
17C
|
SHIM,T=1.5MM |
92025-3704 |
|
|
18
|
IMPELLER |
59256-504 |
|
|
19
|
GRATE |
59366-3001 |
|
|
20
|
BOLT-WP,6X25 |
156R0625 |
|
|
21
|
BOLT,6X16 |
92002-3728 |
|
|
22
|
WASHER |
92022-567 |
|
|
23
|
NUT,INSERT,6MM |
92015-523 |
|
|
24
|
COVER-JET PUMP |
59446-3002 |
|
|
25
|
NOZZLE-STRG |
59476-3702 |
|
|
26
|
BOLT,SOCKET,6X11 |
92001-3701 |
|
|
27
|
JOINT-BALL |
59266-3701 |
|
|
28
|
WASHER-SPRING,6MM |
461S0600 |
|
|
|
|
