KAWASAKI
1200 STX-R
2002

Spare Part Category
Show me all the part categories of the model

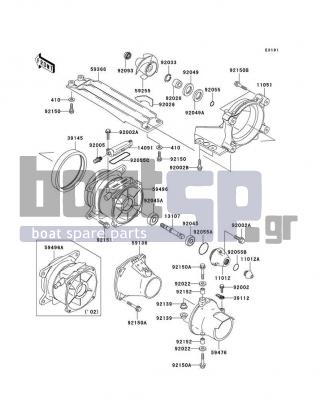

KAWASAKI - 1200 STX-R 2002 - Frame - Jet Pump
Frame
Jet Pump
No Part Part No Notes
410 WASHER-PLAIN-SMALL,6MM 410S0600
11012 CAP 11012-3785
11012A CAP 11012-3786
11051 BRACKET 11051-3763
13107 SHAFT,JETPUMP 13107-3752
39112 RODEND-TIE 39112-3703
39145 TRIM-SEAL 39145-3742
59136 NOZZLE-PUMP 59136-3747
59255 IMPELLER-COMP 59255-3721
59366 GRATE 59366-3719
59476 NOZZLE-STRG 59476-3742
59496A VANE-GUIDE 59496-3749
92002 BOLT,6X25 92002-3714
92002A BOLT,6X30 92002-3726
92002B BOLT,6X20 92002-3755
92022 WASHER,PLAIN 92022-3026
92026 SPACER 92026-3742
92028 BUSHING 92028-3756
92033 RING-SNAP 92033-3725
92045 BEARING-BALL,62022RD 92045-3721
92045A BEARING-BALL 92045-3727
92049 SEAL-OIL,SCJ30X50X7 92049-3720
92049A SEAL-OIL,SCY30X50X7 92049-3721
92055 RING-O,OIL FILTER 92055-1011
92055A RING-O 92055-3741
92055B RING-O 92055-3744
92093 SEAL 92093-3749
92139 BUSHING 92139-3701
92150 BOLT,SOCKET,6X18 92150-3775
92150A BOLT,8X35 92150-3792
92150B BOLT,FLANGED,8X30 92150-3803
92151 BOLT,10X30 92151-3706
92152 COLLAR,8.2X11.8X15 92152-3703
