KAWASAKI
550 SX
1995

Spare Part Category
Show me all the part categories of the model

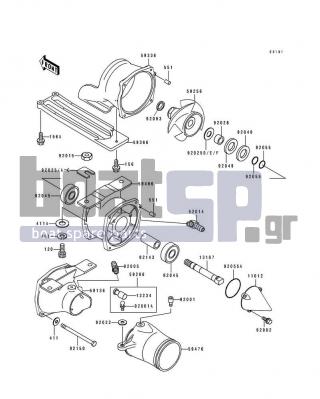

KAWASAKI - 550 SX 1995 - Frame - Jet Pump
Frame
Jet Pump
No Part Part No Notes
120 BOLT-SOCKET 120R1025
156 BOLT-WP,6X12 156R0612
156A BOLT-WP 156R0630
411 WASHER-PLAIN,6MM 411S0600
411A WASHER-PLAIN,10MM 411S1000
461 WASHER-SPRING,10MM 461S1000
551 PIN-DOWEL 551R0612
11012 CAP,JET PUMP 11012-3738
13107 SHAFT,JET PUMP 13107-3721
13234 SHAFT-COMP,JOINT 13234-3708
52014 ELBOW 52014-3708
59136 NOZZLE-PUMP 59136-3713
59256 IMPELLER 59256-3711
59266 JOINT-BALL 59266-3707
59336 CASE-PUMP 59336-3702
59366 GRATE 59366-3001
59476 NOZZLE-STRG 59476-3702
59496 VANE-GUIDE 59496-3702
92001 BOLT,SOCKET,6X11 92001-3701
92001A BOLT,BALL,6MM 92001-3703
92002 BOLT,6X16 92002-3728
92005 FITTING,HOSE 92005-3712
92015 NUT,10MM 92015-3005
92022 WASHER 92022-567
92025 SHIM,T=0.3MM 92025-3701
92025A SHIM,T=0.5MM 92025-3702
92025B SHIM,T=1.0MM 92025-3703
92025C SHIM,T=1.5MM 92025-3704
92025D SHIM,T=1.0 92025-3717
92025E SHIM,T=1.5 92025-3718
92025F SHIM,T=2.0 92025-3719
92028 BUSHING,17X25X15 92028-3717
92045 BEARING-BALL,#63032RD 92045-3706
92049 SEAL-OIL,TCV-25476 92049-3711
92055 RING-O,13X1.9 92055-1021
92055A RING-O 92055-3706
92093 SEAL 92093-3702
92143 COLLAR,17.4X25.4X53 92143-3708
92150 BOLT,6X125 92150-3784
