KAWASAKI
STX-15F
2014

Spare Part Category
Show me all the part categories of the model

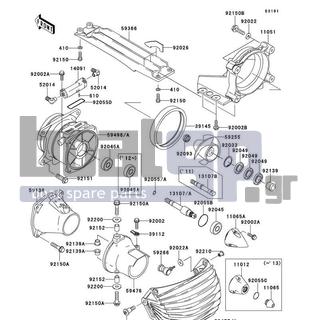

KAWASAKI - STX-15F 2014 - Frame - Jet Pump
Frame
Jet Pump
No Part Part No Notes
410 WASHER-PLAIN-SMALL,6MM 410S0600
610 ROLLER,4X8 610A0408
11051 BRACKET 11051-3763
11065A CAP 11065-0828
13107 SHAFT 13107-0739
14091 COVER,VANE GUIDE 14091-3817
39112 RODEND-TIE 39112-3703
39145 TRIM-SEAL 39145-3742
52014 ELBOW 52014-3711
59136 NOZZLE-PUMP 59136-3760
59255 IMPELLER-COMP 59255-3729
59266 JOINT-BALL 59266-3707
59366 GRATE 59366-3719
59476 NOZZLE-STRG 59476-3743
59477A BUCKET-REVERSE 59477-3713
59496A VANE-GUIDE 59496-0074
92002 BOLT,6X25 92002-3714
92002A BOLT,6X30 92002-3726
92002B BOLT,6X20 92002-3755
92022 WASHER,8.4X23X2.5 92022-3744
92022A WASHER 92022-567
92026 SPACER 92026-3742
92033 RING-SNAP 92033-3730
92045 BEARING-BALL,62022RD 92045-0112
92045A BEARING-BALL,6303R-6 92045-3744
92049 SEAL-OIL 92049-3739
92055 RING-O,12X1.5 92055-025
92055B RING-O 92055-3741
92055D RING-O,66.5X2.0 92055-3784
92093 SEAL 92093-3749
92139 BUSHING 92139-0718
92139A BUSHING 92139-3720
92150 BOLT,SOCKET,6X18 92150-3775
92150A BOLT,8X35 92150-3792
92150B BOLT,FLANGED,8X30 92150-3803
92151 BOLT,10X30 92151-3706
92152 COLLAR,8.2X11.8X15 92152-3703
92153 BOLT,SOCKET,8X30 92153-3745
92200 WASHER,8.0X22.0X1.5 92200-0174
92210 NUT,6MM 92210-3789
