KAWASAKI
TS
1994

Spare Part Category
Show me all the part categories of the model

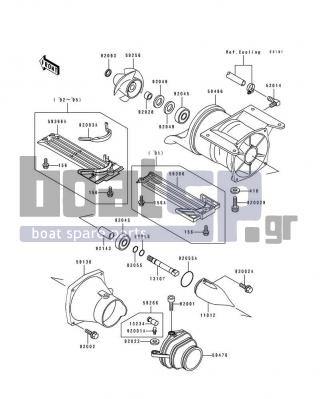

KAWASAKI - TS 1994 - Frame - Jet Pump
Frame
Jet Pump
No Part Part No Notes
156 BOLT-WP,6X20 156R0620
410 WASHER-PLAIN-SMALL,8MM 410S0800
11012 CAP,JET PUMP 11012-3712
13107 SHAFT,JET PUMP 13107-3721
13234 SHAFT-COMP,JOINT 13234-3708
52014 ELBOW 52014-3708
59136 NOZZLE-PUMP 59136-3710
59256 IMPELLER 59256-3705
59266 JOINT-BALL 59266-3707
59366A GRATE 59366-3709
59476 NOZZLE-STRG 59476-3711
59496 VANE-GUIDE 59496-3701
92001 BOLT,SOCKET,6X11 92001-3701
92001A BOLT,BALL,6MM 92001-3703
92002 BOLT,6X30 92002-3726
92002A BOLT,6X16 92002-3728
92002B BOLT,SOCKET,8X20 92002-3771
92022 WASHER 92022-567
92028 BUSHING,17X25X15 92028-3717
92045 BEARING-BALL,#63032RD 92045-3706
92049 SEAL-OIL,TCV-25476 92049-3711
92055 RING-O,13X1.9 92055-1021
92055A RING-O 92055-3706
92093 SEAL 92093-3702
92093A SEAL 92093-3728
92143 COLLAR,17.4X25.4X53 92143-3708
