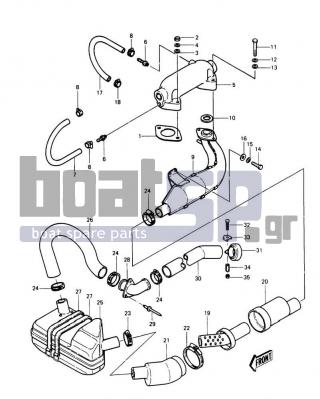

KAWASAKI - JS440 1989 - Exhaust - Muffler(JS440-A11/A12/A13)

Exhaust
Muffler(JS440-A11/A12/A13)
No	Part	Part No	Notes
1	GASKET,EXHAUST	18067-502
2	NUT-HEX,8MM	311M0800
3	WASHER-PLAIN-SMALL,8MM	410S0800
4	WASHER-SPRING,8MM	461S0800
5	PIPE-EXHAUST	18049-3006-YR
6	FITTING,HOSE	92005-3001
7	TUBE,9X190	92059-3021
8	CLAMP	92037-504
9	MUFFLER	18001-520
10	GASKET,EXHAUST	18067-509
11	BOLT,8X45	110R0845
12	WASHER-SPRING,8MM	461S0800
13	WASHER-PLAIN-SMALL,8MM	410S0800
14	BOLT,8X20	110R0820
15	WASHER-SPRING,8MM	461S0800
16	WASHER,8.4X23X2.5	92022-3744
17	TUBE,9X16X250	92059-502
18	CLAMP	92037-504
19	PIPE-EXHAUST	59151-528
20	TUBE	92059-542
21	TUBE	92059-543
22	CLAMP	92037-541
23	CLAMP	92037-509
24	CLAMP	92037-509
25	MUFFLER,WATER BOX	18001-3006
26	TUBE,EXHAUST	92059-528
27	BAND	92072-511
28	PIPE-TAIL,TAIL,EXHAUST	59156-506
29	RIVET	92039-3701
30	TUBE,EXHAUST,TAIL	92059-549
31	CLAMP	92037-545
32A	SCREW,6X45	92009-3747
33	WASHER	92095-513
34	NUT,6MM	92015-532
35	NUT-HEX,6MM	311R0600
